      STANDARD MULTI-SPINDLE BAR LOADER
      • Diameters:Ø5mm -> Ø95mm
      • Bar Lenght: da 3200mm a 5000mm
      • Custom Measurements
      • Hydraulic Advancement
      • Bar Change Times: 15-25 sec
      More information

      Download Brochure

      The MULTI L loader, thanks to its thirty-year evolution, combines reliability and performance in a single product.

      Thanks to the removal of the advance counter-pincers, the lathe setup is simple and quick, while the rear recovery of the workpiece allows for maximum efficiency between the lathe and the loader, eliminating the disadvantages associated with the evacuation of residual material in the work area.

      The numerous available accessories and chromatic adaptability will make the loader perfectly integrated with your lathe.



      Available accessories: Bundle and Rack
      STANDARD MULTI-SPINDLE BAR LOADER
      • Diameters:Ø5mm -> Ø95mm
      • Bar Lenght: da 3200mm a 5000mm
      • Custom Measurements
      • Hydraulic Advancement
      • Bar Change Times: 15-25 sec
      More informations

      Download Brochure

      The MULTI L loader, thanks to its thirty-year evolution, combines reliability and performance in a single product.

      Thanks to the removal of the advance counter-pincers, the lathe setup is simple and quick, while the rear recovery of the workpiece allows for maximum efficiency between the lathe and the loader, eliminating the disadvantages associated with the evacuation of residual material in the work area.

      The numerous available accessories and chromatic adaptability will make the loader perfectly integrated with your lathe.



      Available accessories: Bundle and Rack
      COMPACT MULTI-SPINLE BAR LOADER
      • Diameters: Ø5mm -> Ø95mm
      • Bar Lengths: from 3200mm to 5000mm
      • Custom Measurements
      • Hydraulic Advancement
      • Bar Change Times: 25-33 sec
      More information

      Download Brochure

      The MULTI LS series, designed to meet the needs of space reduction, integrates all the main features of the MULTI LS series. The technological innovation brought to the new bar pusher lance allows for the same movements while reducing the rear development of the loader, maintaining the same level of performance in terms of flexibility and rigidity.



      Available accessories: Bundle and Rack
      MULTI-SPINDLE INTRODUCTION
      • Diameters: Ø5mm -> Ø25mm
      • Bar Lengths: from 2900mm to 3200mm
      • Custom Measurements
      • Bar Stock Capacity: 480mm (19")
      • Electric Advancement
      • Bar Change Times: 8-12 sec
      More information

      Download Brochure

      1. Reduction of machine downtime

      2. Quick channel replacement

      3. Quick cartridge replacement

      4a. Accelerated bar loading for Mori Say 620

      4b. Masked bar loading for GM/GS/AS 20 and var. 25

      5. Wear-resistant plastic guide channel

      6. Magazine capacity: 480mm

      7. Upper part retraction



      Available accessories: Bundle and Rack
      BUNDLE (Bundle loading system)
      • Diameters: Ø9mm -> Ø95mm
      • Bar Lengths: from 3200mm to 5000mm (16ft)
      • Custom Measurements
      • Capacity: 1.2 t
      More information

      Download Brochure

      1. Improved loading ergonomics, loading with bridge crane or forklift

      2. Increased number of bars in the magazine

      3. Compliant with new regulations on minimum bar loading height



      Compatible with: MULTI-L, MULTI-LS, and MULTI-F AG0
      LIFTER (Lifter loading system)
      • Diameters: Ø5mm -> Ø95mm
      • Bar Lengths: from 3200mm to 5000mm (16ft)
      • Custom Measurements
      • Capacity: Up to 15 bars
      More information

      Download Brochure

      1. Increased number of bars in the magazine

      2. Compliant with new regulations on minimum bar loading height



      Compatible with: MULTI-L, MULTI-LS, and MULTI-F AG0

      TMZ842CNC

      TMZ842CNC

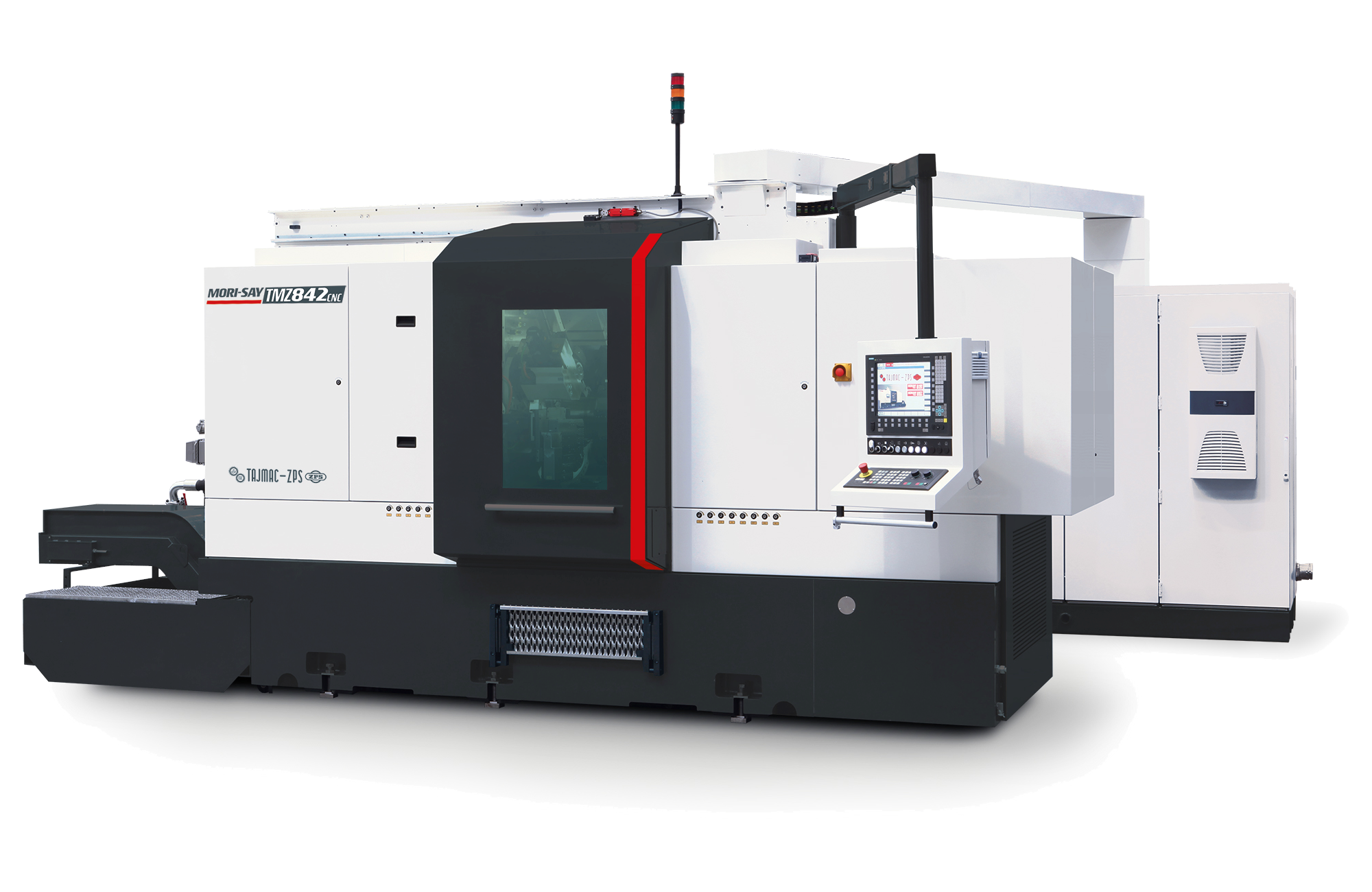

      Tornio plurimandrino MORI-SAY TMZ842CNC

      Questo tornio automatico a otto mandrini è progettato per la produzione in serie e di massa di pezzi con diametro fino a 42 mm.

      Il materiale di base per la lavorazione può essere costituito da barre, pezzi fusi o pezzi fucinati. I prodotti principali realizzati su queste macchine sono in genere parti rotanti per l'industria automobilistica. Altri campi di applicazione per questa macchina sono: singole parti di cuscinetti, valvole, componenti per l'industria aerospaziale e altri.

      • Alta precisione nella produzione in serie di massa
      • Elevata rigidità paragonabile alle macchine a camme
      • 8 azionamenti mandrino indipendenti
      • Sistema di controllo Siemens Sinumerik 840D sl
      • Programma tecnologico Tmis di proprietà

      Parametri tecnici

      Parametri tecnici MORI-SAY TMZ842CNC
      Numero mandrini 8
      Massimo diametro barra 42 mm
      Lunghezza max. caricamento materiale 180 mm
      Massima velocità mandrino 4 500 min-1
      Potenza max. motore mandrino 11 kW
      Potenza totale max. motori mandrino 88 kW
      Potenza nominale motore mandrino 66 Nm
      Tempo traslazione tamburo di 1 posizione 1 s
      Numero slitte longitudinali 8
      Numero slitte a croce 7
      Numero slitte per troncatura 1

      Brochure MORI-SAY TMZ842CNC

      Se siete interessati a questa macchina, non esitate a contattarci.
