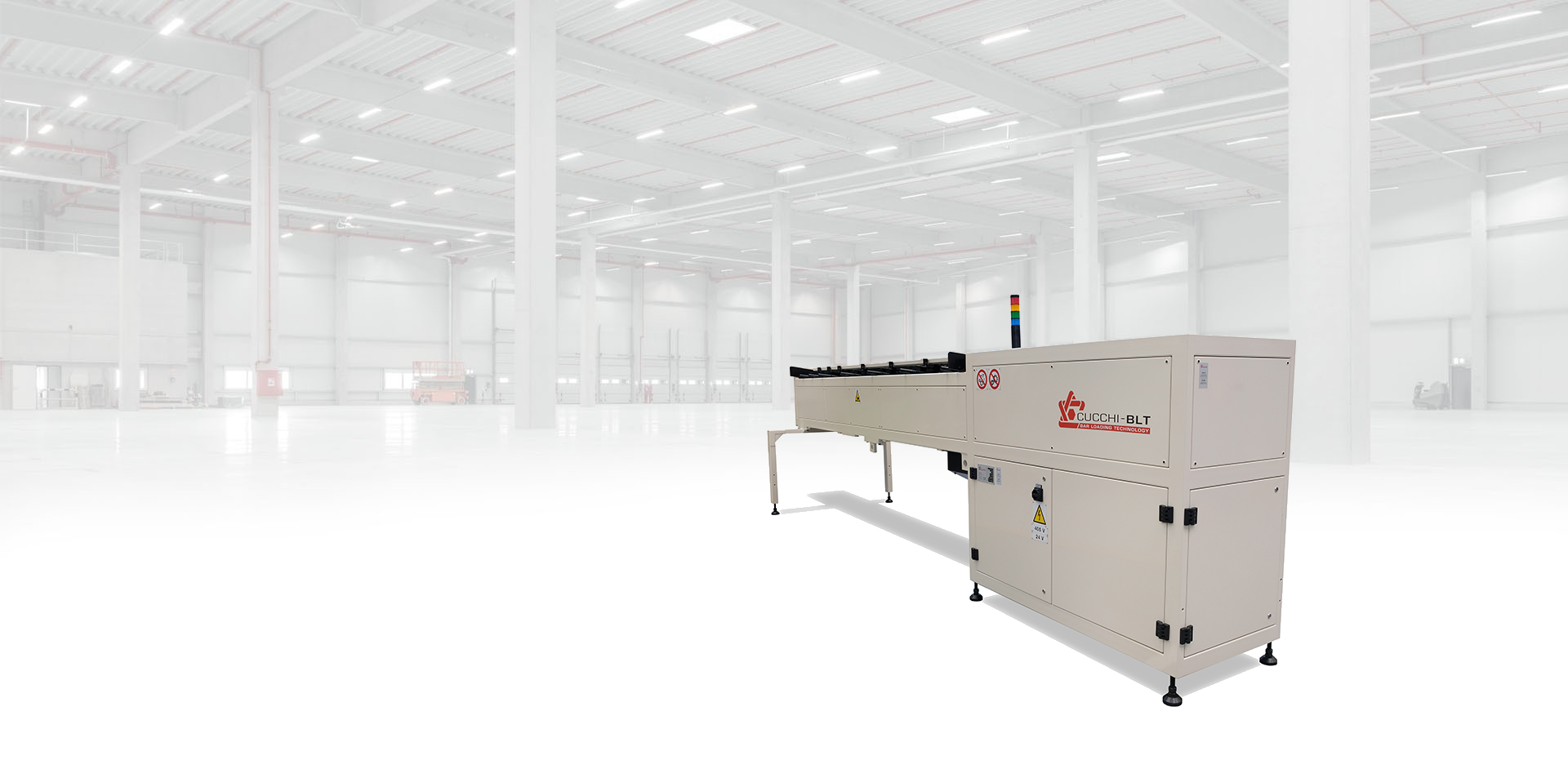

      STANDARD MULTI-SPINDLE BAR LOADER
      • Diameters:Ø5mm -> Ø95mm
      • Bar Lenght: da 3200mm a 5000mm
      • Custom Measurements
      • Hydraulic Advancement
      • Bar Change Times: 15-25 sec
      More information

      Download Brochure

      The MULTI L loader, thanks to its thirty-year evolution, combines reliability and performance in a single product.

      Thanks to the removal of the advance counter-pincers, the lathe setup is simple and quick, while the rear recovery of the workpiece allows for maximum efficiency between the lathe and the loader, eliminating the disadvantages associated with the evacuation of residual material in the work area.

      The numerous available accessories and chromatic adaptability will make the loader perfectly integrated with your lathe.



      Available accessories: Bundle and Rack
      STANDARD MULTI-SPINDLE BAR LOADER
      • Diameters:Ø5mm -> Ø95mm
      • Bar Lenght: da 3200mm a 5000mm
      • Custom Measurements
      • Hydraulic Advancement
      • Bar Change Times: 15-25 sec
      More informations

      Download Brochure

      The MULTI L loader, thanks to its thirty-year evolution, combines reliability and performance in a single product.

      Thanks to the removal of the advance counter-pincers, the lathe setup is simple and quick, while the rear recovery of the workpiece allows for maximum efficiency between the lathe and the loader, eliminating the disadvantages associated with the evacuation of residual material in the work area.

      The numerous available accessories and chromatic adaptability will make the loader perfectly integrated with your lathe.



      Available accessories: Bundle and Rack

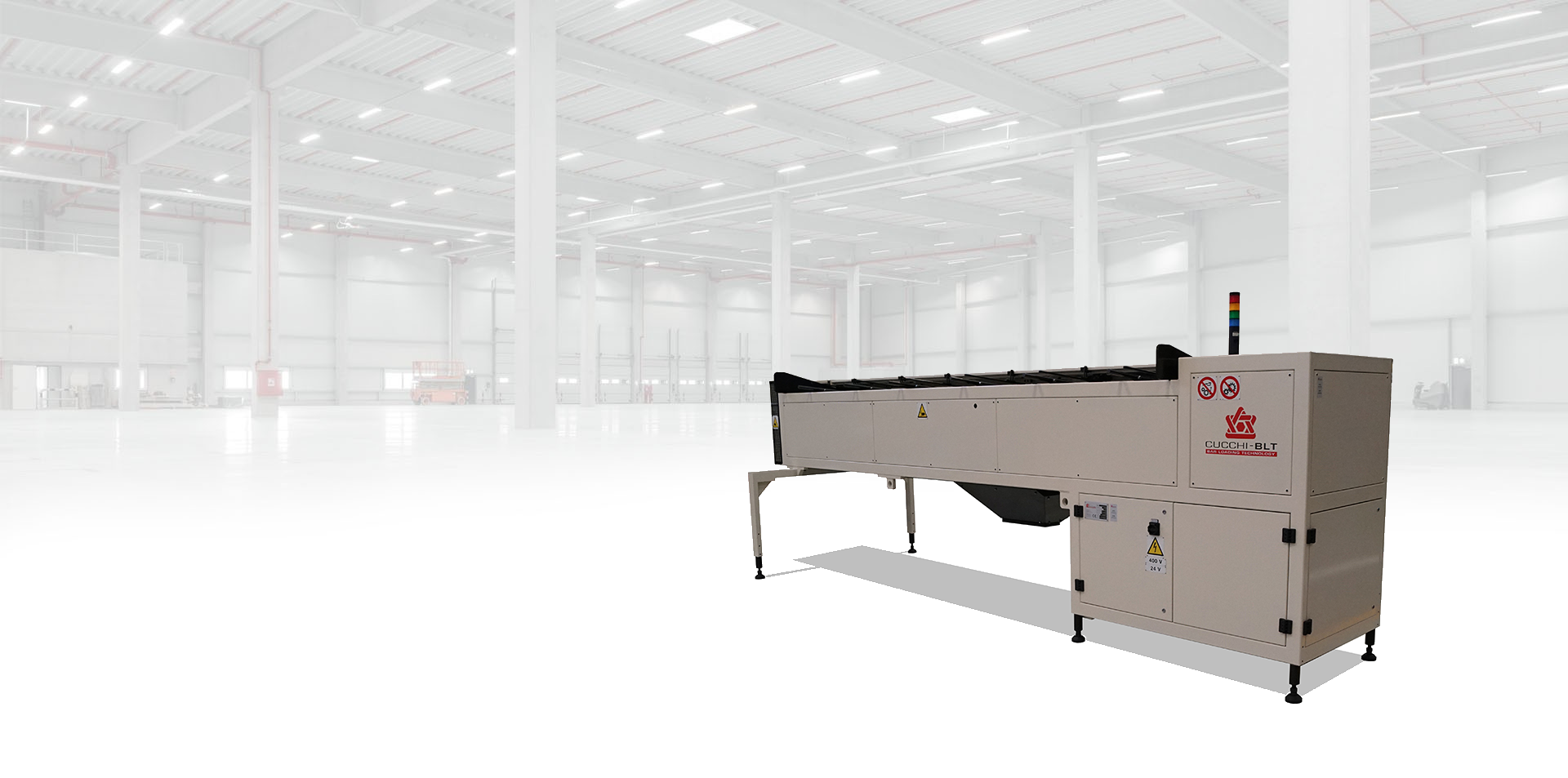

      COMPACT MULTI-SPINLE BAR LOADER
      • Diameters: Ø5mm -> Ø95mm
      • Bar Lengths: from 3200mm to 5000mm
      • Custom Measurements
      • Hydraulic Advancement
      • Bar Change Times: 25-33 sec
      More information

      Download Brochure

      The MULTI LS series, designed to meet the needs of space reduction, integrates all the main features of the MULTI LS series. The technological innovation brought to the new bar pusher lance allows for the same movements while reducing the rear development of the loader, maintaining the same level of performance in terms of flexibility and rigidity.



      Available accessories: Bundle and Rack
      MULTI-SPINDLE INTRODUCTION
      • Diameters: Ø5mm -> Ø25mm
      • Bar Lengths: from 2900mm to 3200mm
      • Custom Measurements
      • Bar Stock Capacity: 480mm (19")
      • Electric Advancement
      • Bar Change Times: 8-12 sec
      More information

      Download Brochure

      1. Reduction of machine downtime

      2. Quick channel replacement

      3. Quick cartridge replacement

      4a. Accelerated bar loading for Mori Say 620

      4b. Masked bar loading for GM/GS/AS 20 and var. 25

      5. Wear-resistant plastic guide channel

      6. Magazine capacity: 480mm

      7. Upper part retraction



      Available accessories: Bundle and Rack

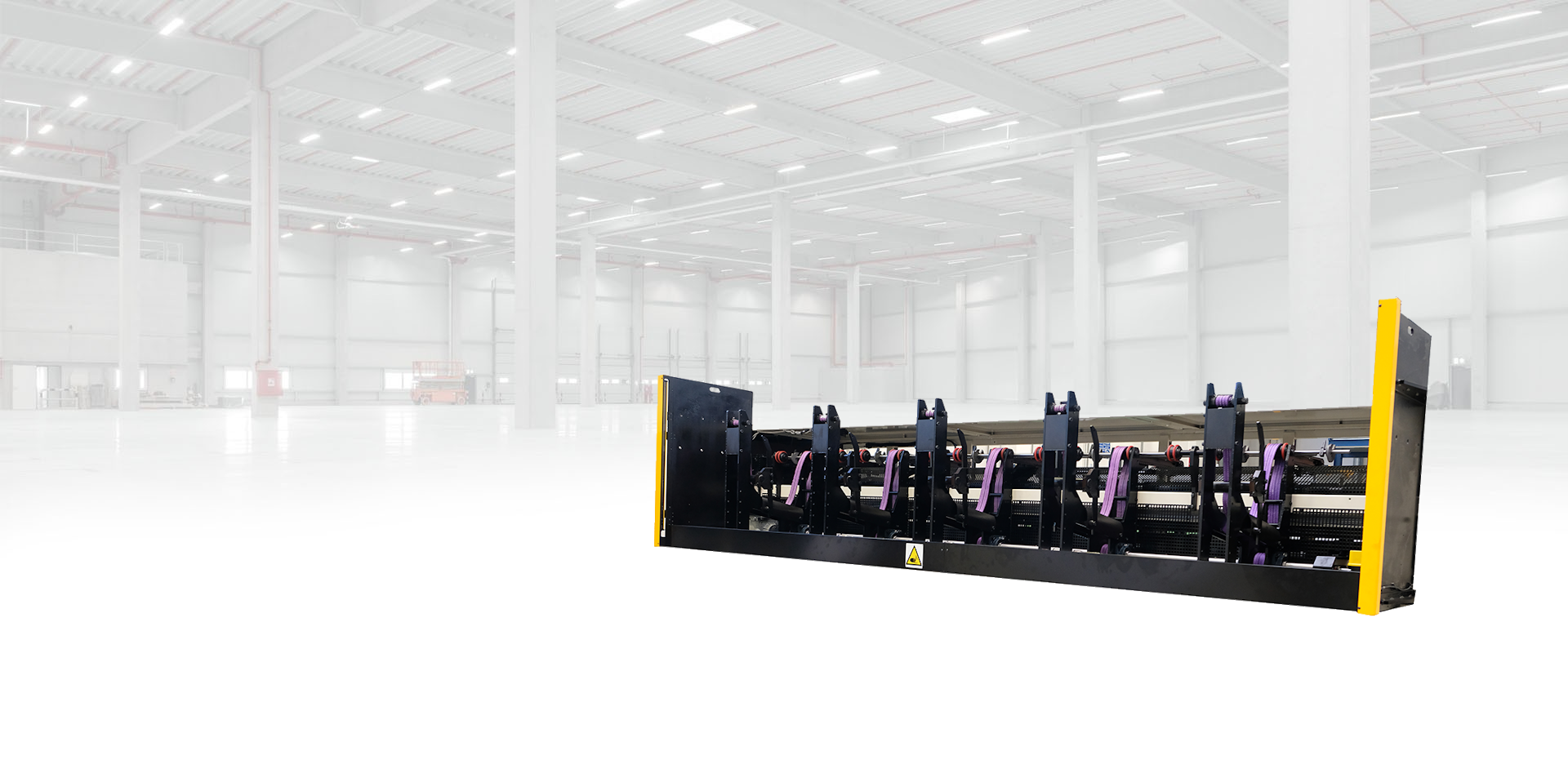

      BUNDLE (Bundle loading system)
      • Diameters: Ø9mm -> Ø95mm
      • Bar Lengths: from 3200mm to 5000mm (16ft)
      • Custom Measurements
      • Capacity: 1.2 t
      More information

      Download Brochure

      1. Improved loading ergonomics, loading with bridge crane or forklift

      2. Increased number of bars in the magazine

      3. Compliant with new regulations on minimum bar loading height



      Compatible with: MULTI-L, MULTI-LS, and MULTI-F AG0

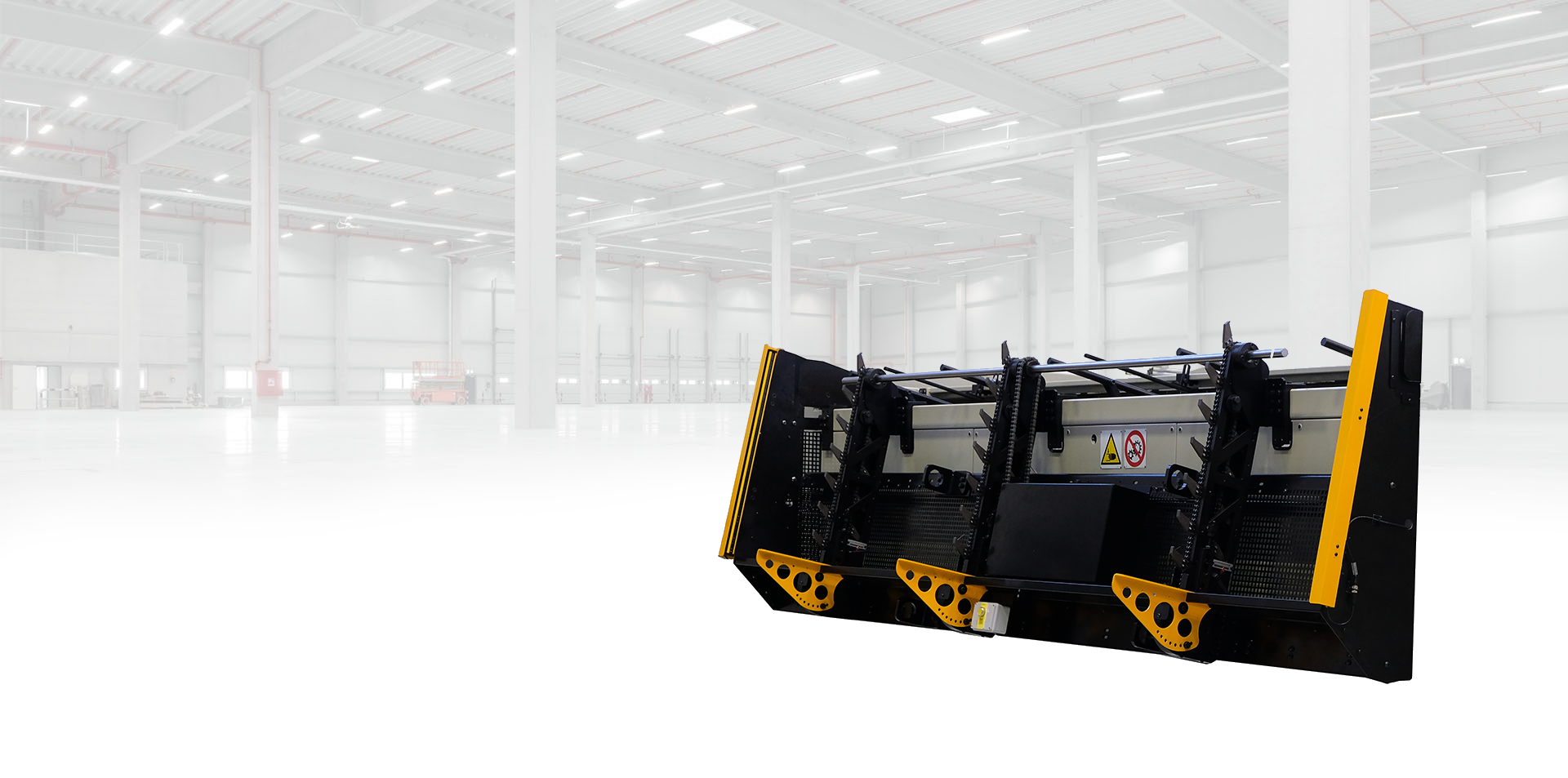

      LIFTER (Lifter loading system)
      • Diameters: Ø5mm -> Ø95mm
      • Bar Lengths: from 3200mm to 5000mm (16ft)
      • Custom Measurements
      • Capacity: Up to 15 bars
      More information

      Download Brochure

      1. Increased number of bars in the magazine

      2. Compliant with new regulations on minimum bar loading height



      Compatible with: MULTI-L, MULTI-LS, and MULTI-F AG0

      OUR PRODUCTS

      MULTI-L

      MULTI-LS

      BUNDLE

      LIFTER

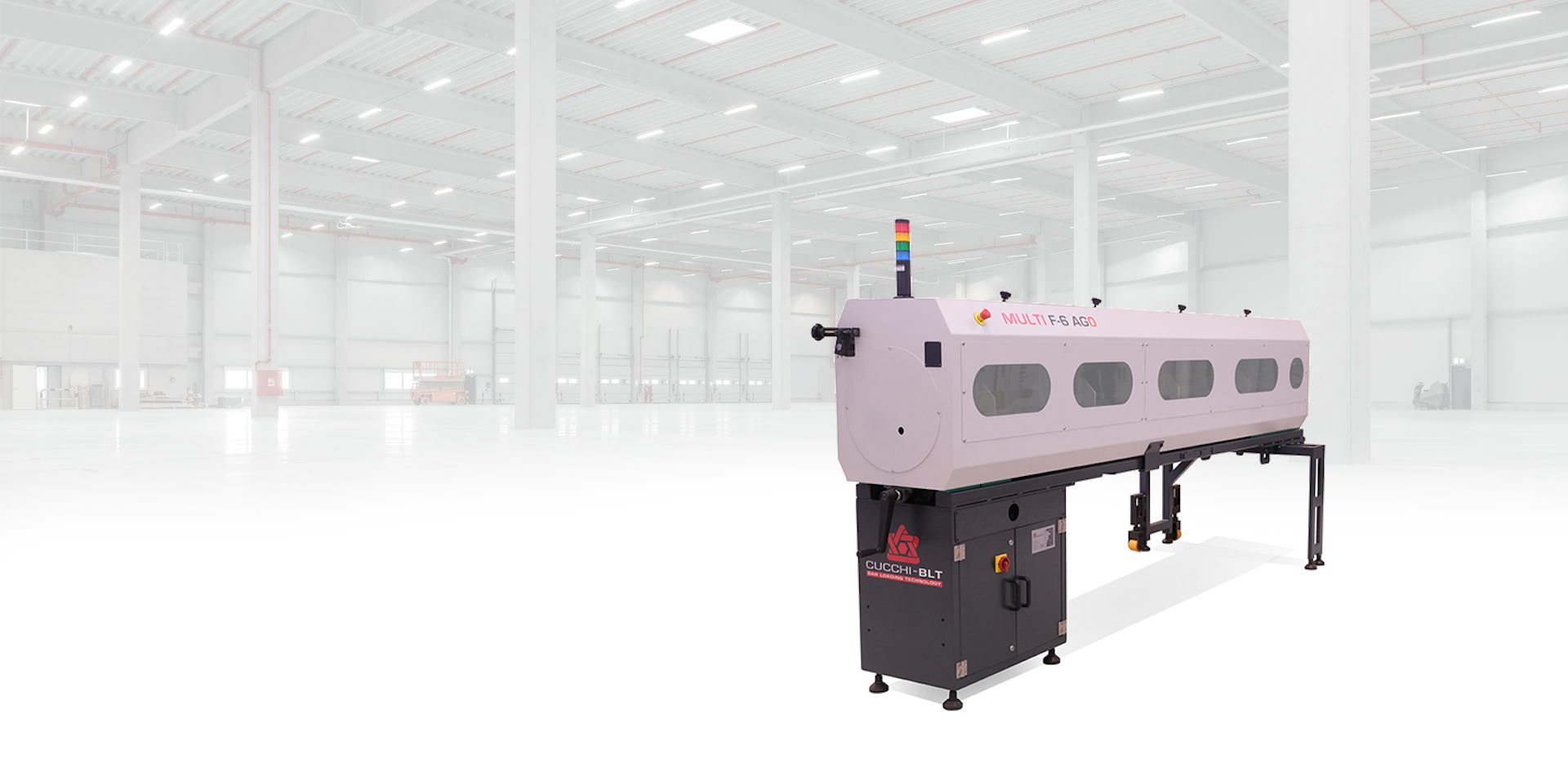

      MULTI-F AG0
      CUCCHI-BLT s.r.l.


      About us

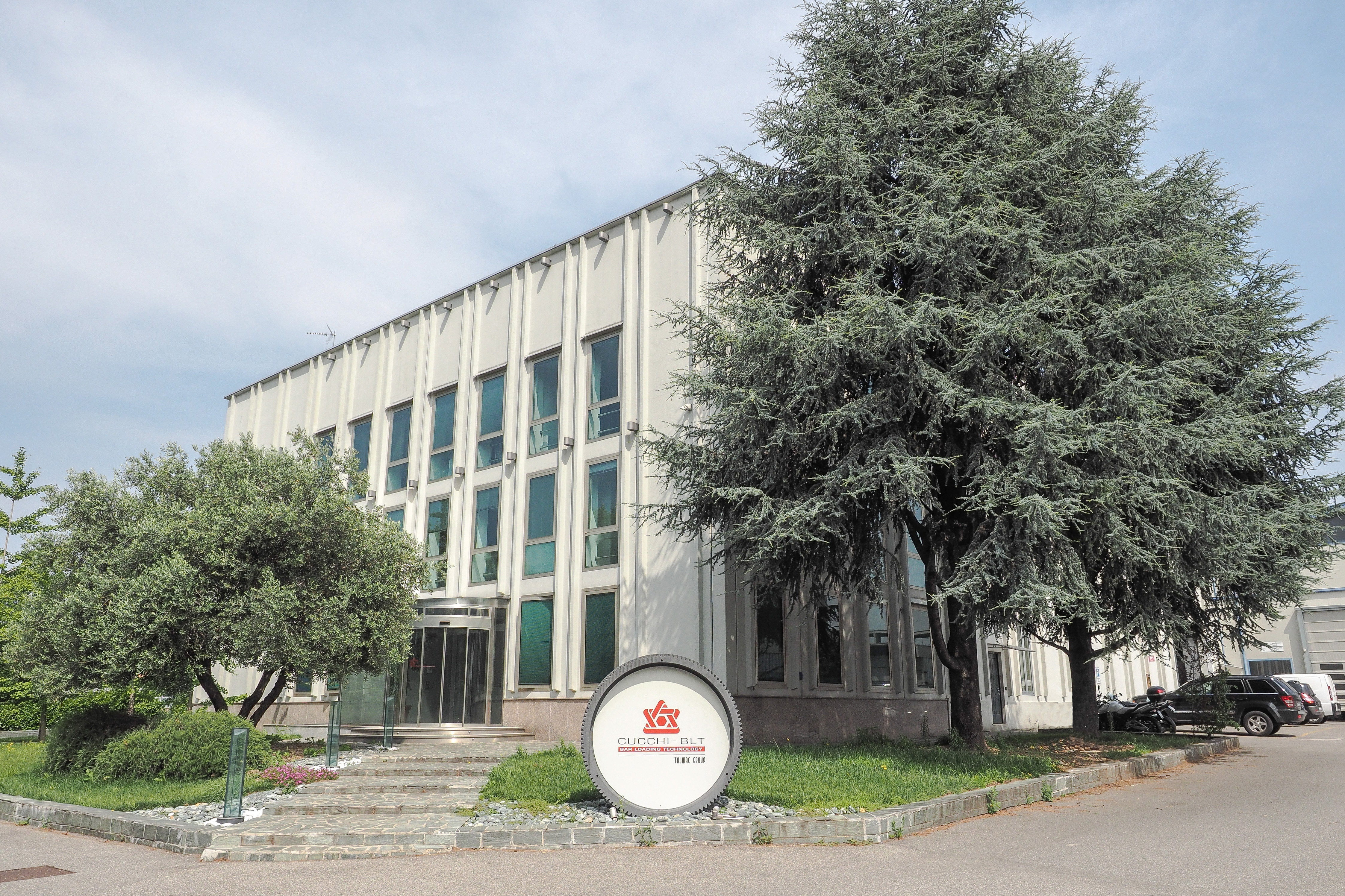

      CUCCHI-BLT srl
